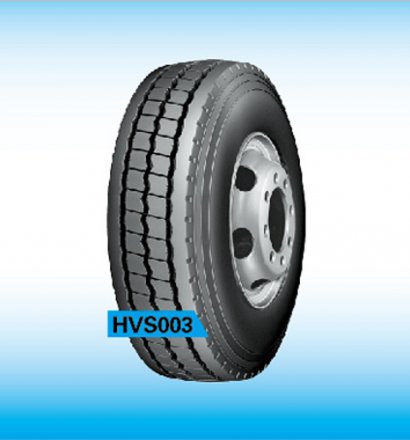

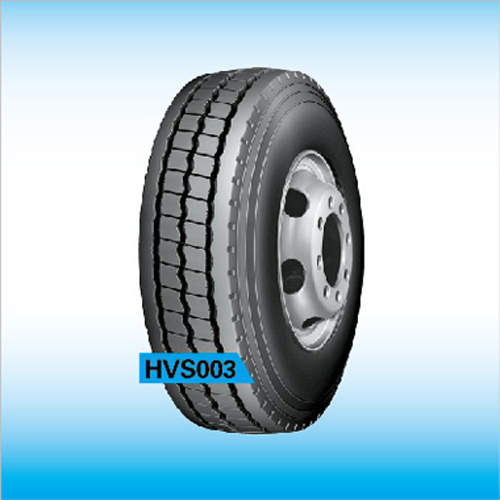

All Position HVS003
The main features:
Suitable for all kinds of the roads
High powered mixed pattern，quasi-sovereign tread pattern
Integrative shoulder pattern
High loading capacity
All Position
Product parameters
| SIZE | PR | LOAD INDEX | SPEED SYMBOL | PATTERN DEPTH (mm) | STANDARD RIM | PERMITTED RIM | MAX LOAD （Kg） | PRESSURE (Kpa) | NEW TIRE INFLATED DIMENSION (mm) | ||
| S | D | OD | SW | ||||||||
| ±1.0% | ±3.5% | ||||||||||
| 11.00R20 | 18 | 152/149 | K | 17.00 | 8 | 8.00V,8.5 | 3550 | 3250 | 930 | 1085 | 293 |
| 12.00R20 | 18 | 154/151 | K | 17.50 | 8.5 | 8.50V,9.0 | 3750 | 3450 | 830 | 1125 | 315 |
| 12.00R24 | 20 | 160/157 | K | 16.00 | 8.5 | 8.50V,9.0 | 4500 | 4125 | 900 | 1226 | 315 |
