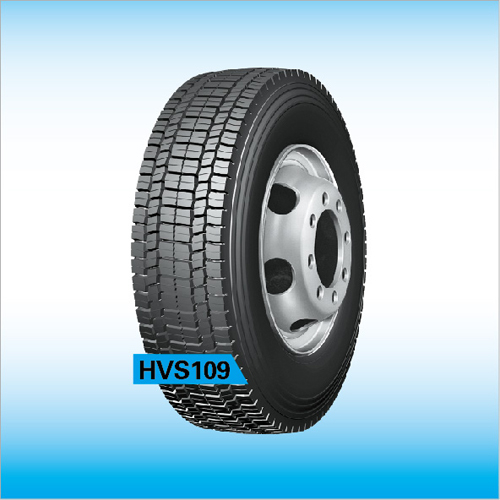

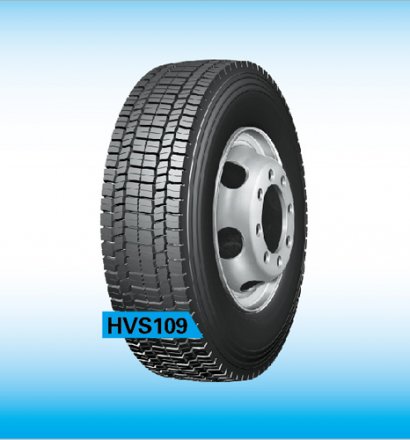

Drive HVS109
The main features:
Deep tread design with cut-resistant,wear-resistant.low heating performance
Good traction.braking and ground grasping capability.
High loading capability.suitable for driving
Product parameters
| SIZE | PR | LOAD INDEX | SPEED SYMBOL | PATTERN DEPTH(mm) | STANDARD RIM | PERMITTED RIM | MAX LOAD （Kg） | PRESSURE (Kpa) | NEW TIRE INFLATED DIMENSION (mm) | ||
| S | D | OD | SW | ||||||||
| ±1.0% | ±3.5% | ||||||||||
| 295/80R22.5 | 18 | 152/148 | M | 21.00 | 9 | 8.25 | 3350 | 3075 | 830 | 1044 | 295 |
| 315/80R22.5 | 18 | 154/151 | M | 21.00 | 9 | 9.75 | 4000 | 3650 | 850 | 1076 | 312 |
| 11R22.5 | 16 | 146/143 | M | 15.50 | 8.25 | 7.5 | 3000 | 2725 | 830 | 1054 | 279 |
| 12R22.5 | 18 | 152/148 | M | 16.50 | 9.0 | 8.25 | 3350 | 3075 | 830 | 1085 | 300 |
| 13R22.5 | 18 | 154/151 | L | 15.50 | 9.75 | 9 | 3750 | 3450 | 830 | 1124 | 320 |
| 225/70R19.5 | 14 | 128/126 | M | 15.50 | 6.8 | 1800 | 1700 | 760 | 811 | 226 | |
| 245/70R19.5 | 16 | 136/134 | L | 15.00 | 7.5 | 2240 | 2120 | 825 | 839 | 248 | |
