The main features:

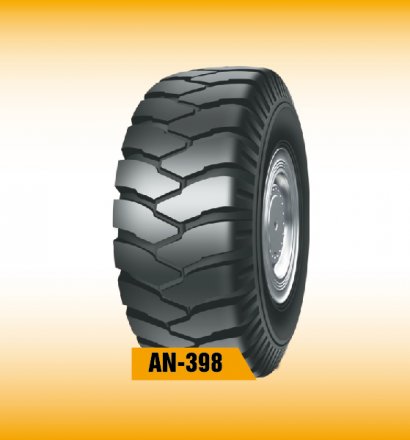

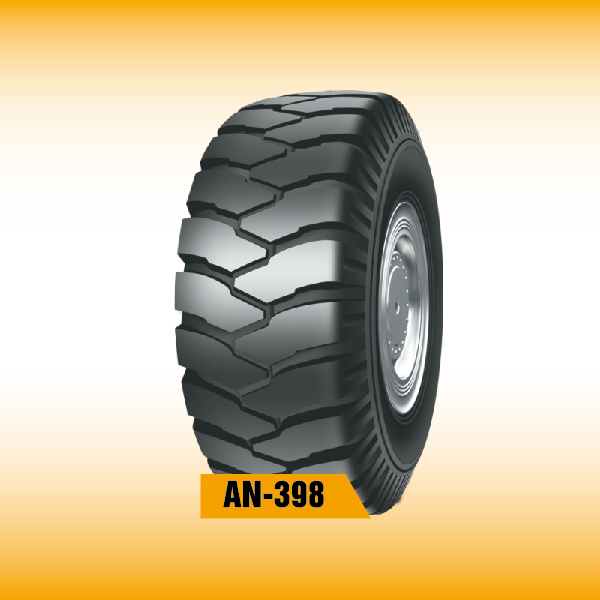

AN-398
Designed with heavy-duty nylon tire body and super-tough tire surface to be best for mining, building and irrigation project applications
It comes with extra-deep and wide pattern to reduce soliding , enhance stability and increase traction force
| SIZE | PLY RATING | PATTERN DEPTH (mm) | STANDARD RIM | NEW INFLATED SIZES (mm) | MAX LOAD （Kg） | PRESSURE (Kpa) | |||
| SW | OD | 50KM/H | 10KM/H | 65/50KM/H | 10KM/H | ||||
| 14.00-20 | 20 | 23 | 10 | 375 | 1240 | 4375 | 5000 | 700 | 770 |
| 18 | 23 | 10 | 375 | 1240 | 3970 | 4525 | 600 | 670 | |
