The main features:

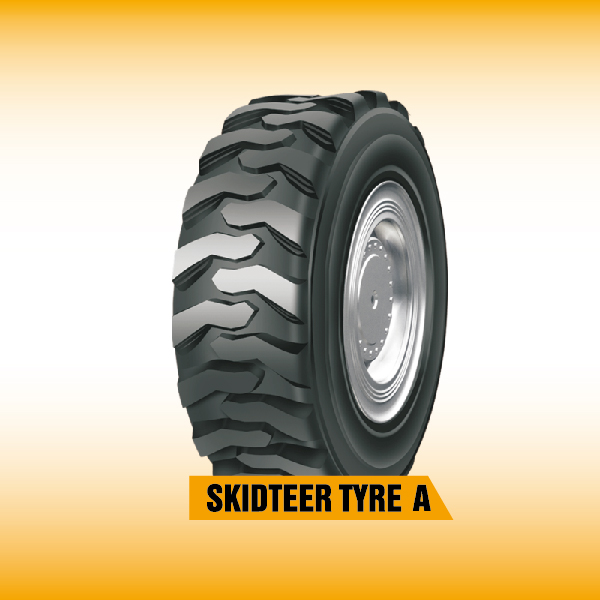

SKIDTEER TYRE A
Deep- tread tire built especially for skid-steer and aerial lift equipment
Heavy-duty sidewall and large curb rib deliver more stability and greater puncture resistance
Built to last with deep tread, buttressed lugs, full sidewall protection and an aggressive rim deflector to keep out
Special puncture-resistance rubber compounds take on the most demanding conditions
| SIZE | PLY RATING | PATTERN DEPTH (mm) | STANDARD RIM | NEW INFLATED SIZES (mm) | MAX LOAD （Kg） | PRESSURE (Kpa) | |||
| SW | OD | ||||||||
| 10-16.5 | 10 | 20 | 8.25 | 264 | 773 | 2135 | 520 | ||
| 12-16.5 | 10 | 20 | 9.75 | 307 | 831 | 2540 | 450 | ||
| 14-17.5 | 14 | 20 | 10.5 | 350 | 922 | 3870 | 550 | ||
