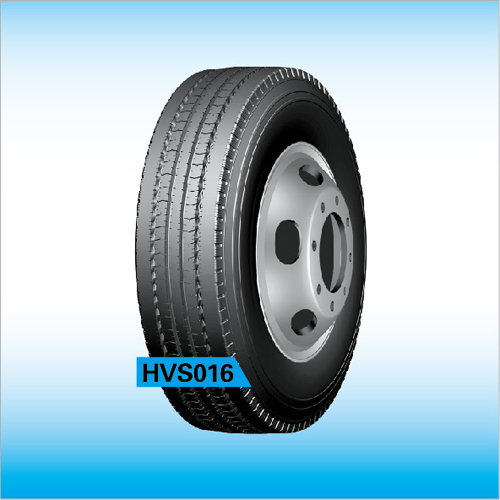

Steer & Trailer HVS016
The main features:
Ultra strong braking and driving performance
Superior wearability and low heat build-up,low noise
Remarkable ground adhesion performance and anti-wet traction
Steer&Trailer
Product parameters
| SIZE | PR | LOAD INDEX | SPEED SYMBOL | PATTERN DEPTH (mm) | STANDARD RIM | PERMITTED RIM | MAX LOAD （Kg） | PRESSURE (Kpa) | NEW TIRE INFLATED DIMENSION (mm) | ||
| S | D | OD | SW | ||||||||
| ±1.0% | ±3.5% | ||||||||||
| 11.00R20 | 18 | 152/149 | K | 17.00 | 8 | 8.00V,8.5 | 3550 | 3250 | 930 | 1085 | 293 |
| 12.00R20 | 18 | 154/151 | K | 17.50 | 8.5 | 8.50V,9.0 | 3750 | 3450 | 830 | 1125 | 315 |
| 11R22.5 | 16 | 146/143 | M | 15.50 | 8.25 | 7.5 | 3000 | 2725 | 830 | 1054 | 279 |
| 12R22.5 | 18 | 152/148 | M | 15.50 | 9.0 | 8.25 | 3350 | 3075 | 830 | 1085 | 300 |
| 295/80R22.5 | 18 | 152/148 | M | 17.00 | 9 | 8.25 | 3350 | 3075 | 830 | 1044 | 295 |
| 315/80R22.5 | 18 | 154/151 | M | 17.00 | 9 | 9.75 | 4000 | 3650 | 850 | 1076 | 312 |
